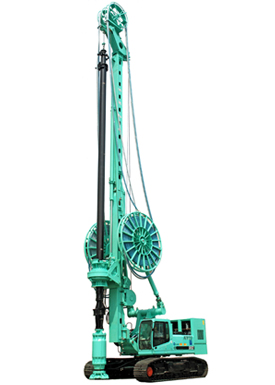

SH25H hydrauilc pneumatically actuated rig is one new type pipe-foundation construction facility.It is mainly for reliably driling original cook .This machine centralizes the technical merits of the rotary driling rig, the air-actuated down-holes and the hydraulic diaphragm wall grab.
This machine structure with many superior processing properties is to drive the down-hole hammer impact the rock.aim to smash the rock party and cut the rock to pleces, discharged by air-lift in reverse circulation way and air direct circulation way. It can realize the fast continuous driling function to the big cross-section original rock. The host machine can conveniently exchange the job practices between the driling,the impactng and the driling with the CFA.
| type | SH25H |
| Height of tower(mm) | 23860 |
| Weight of base machine(without driling tools)(t) |
70.5 |
| t | 12 |
| Cylinder stroke (mm) |
5700 |
| Cylinder pressure force (kN) |
220 |
| Cylinder pulling force(kN) |
220 |
| Main winch single line pull(kN) |
220 |
| Main winch Rope diameter(mm) |
26 |
| Main winch line speed max.(m/min) |
60 |
| Auxiliary winch single line pull(kN) |
75 |
| Auxiliary winch rope diameter (mm) |
18 |
| Auxiliary winch line speed max.(m/min) |
45 |
